Architectural Technology
October 2024
This project examines Northcote House's design and construction, emphasising architectural intent and building technologies. Through six construction stages, it enhances skills in technical drawing and sustainable practices, producing detailed drawings and annotations highlighting sequencing, materials, and Australian standards compliance.

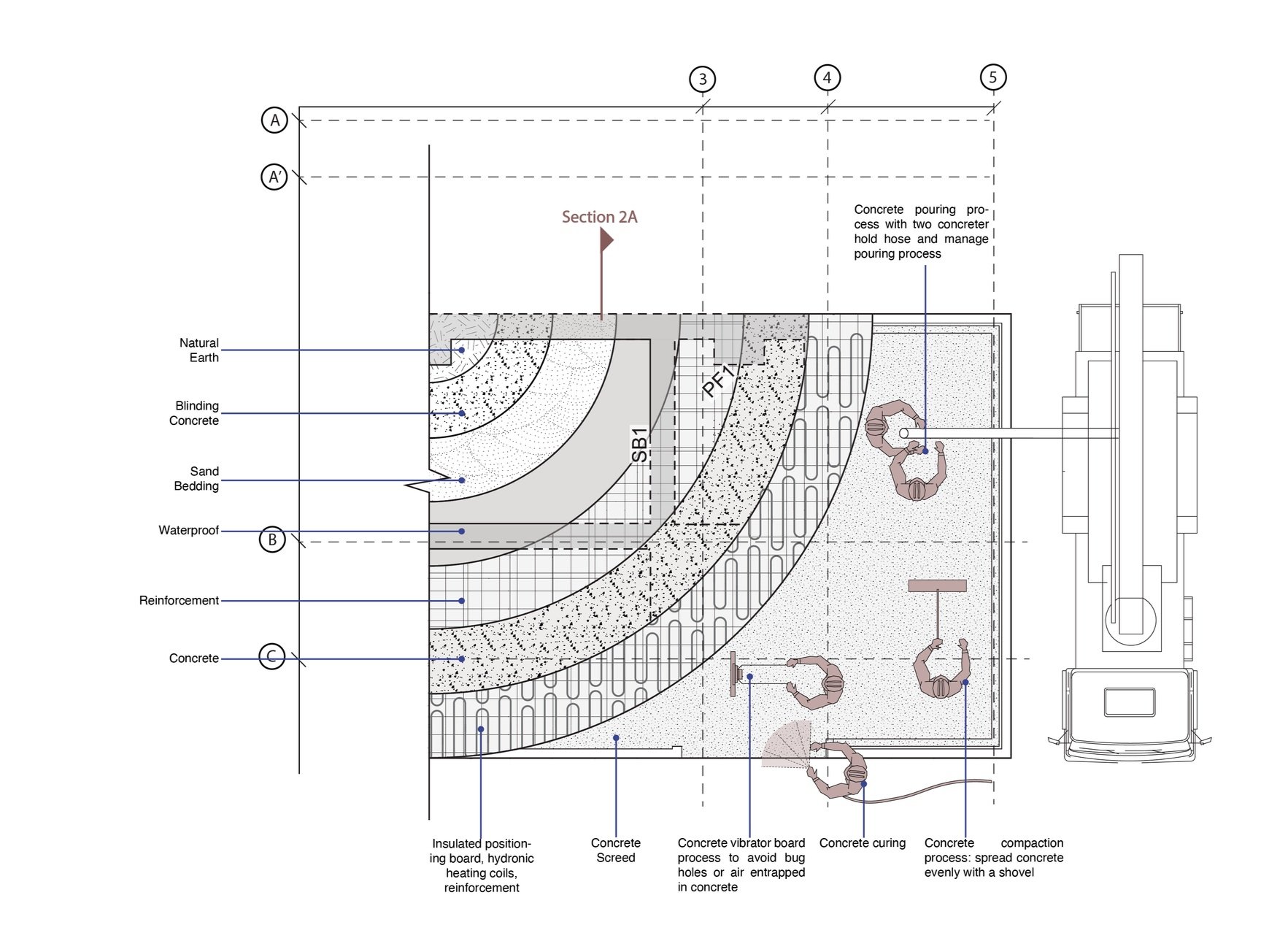

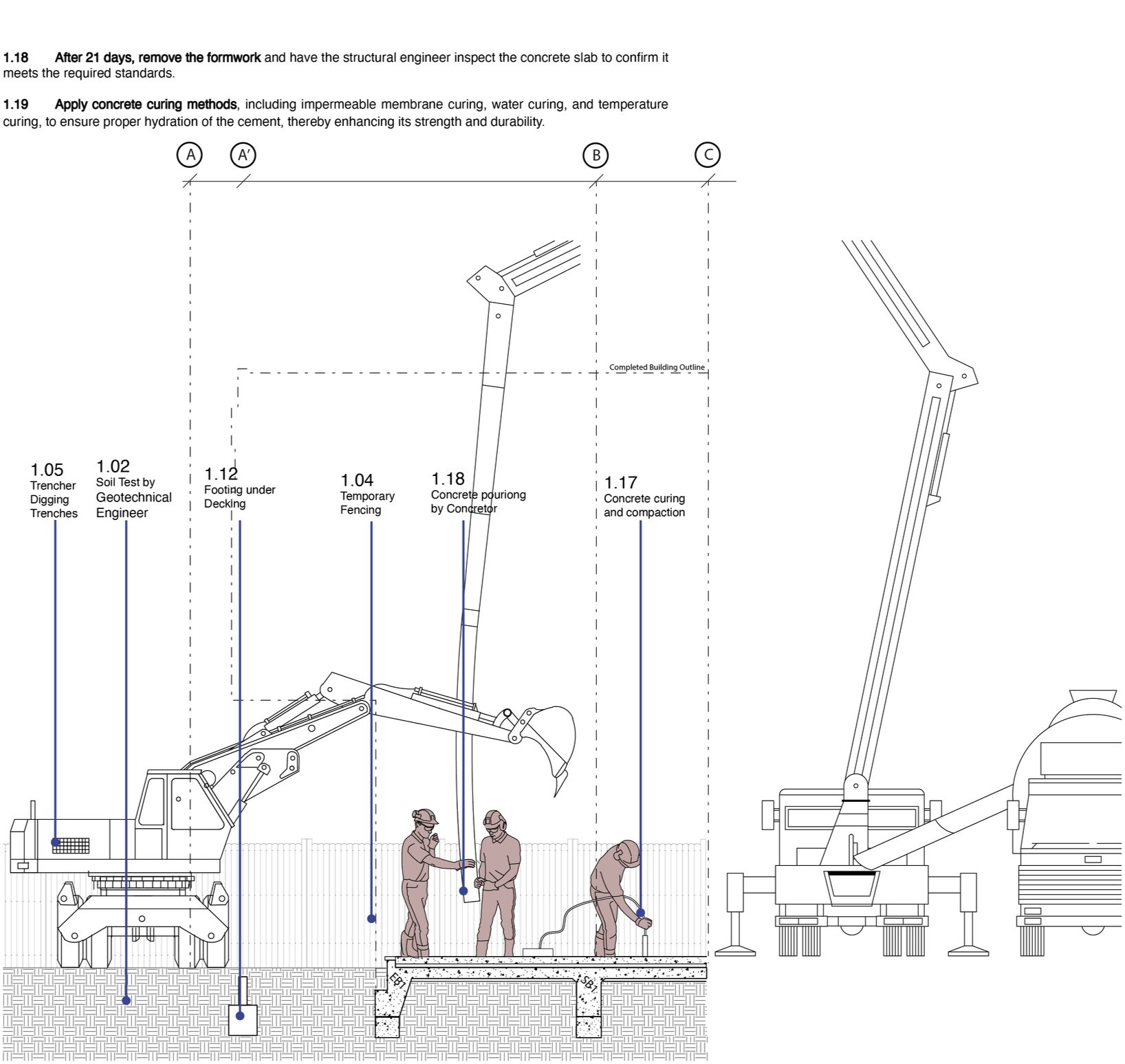

Stage 1 Site preparation, Foundation, Footing

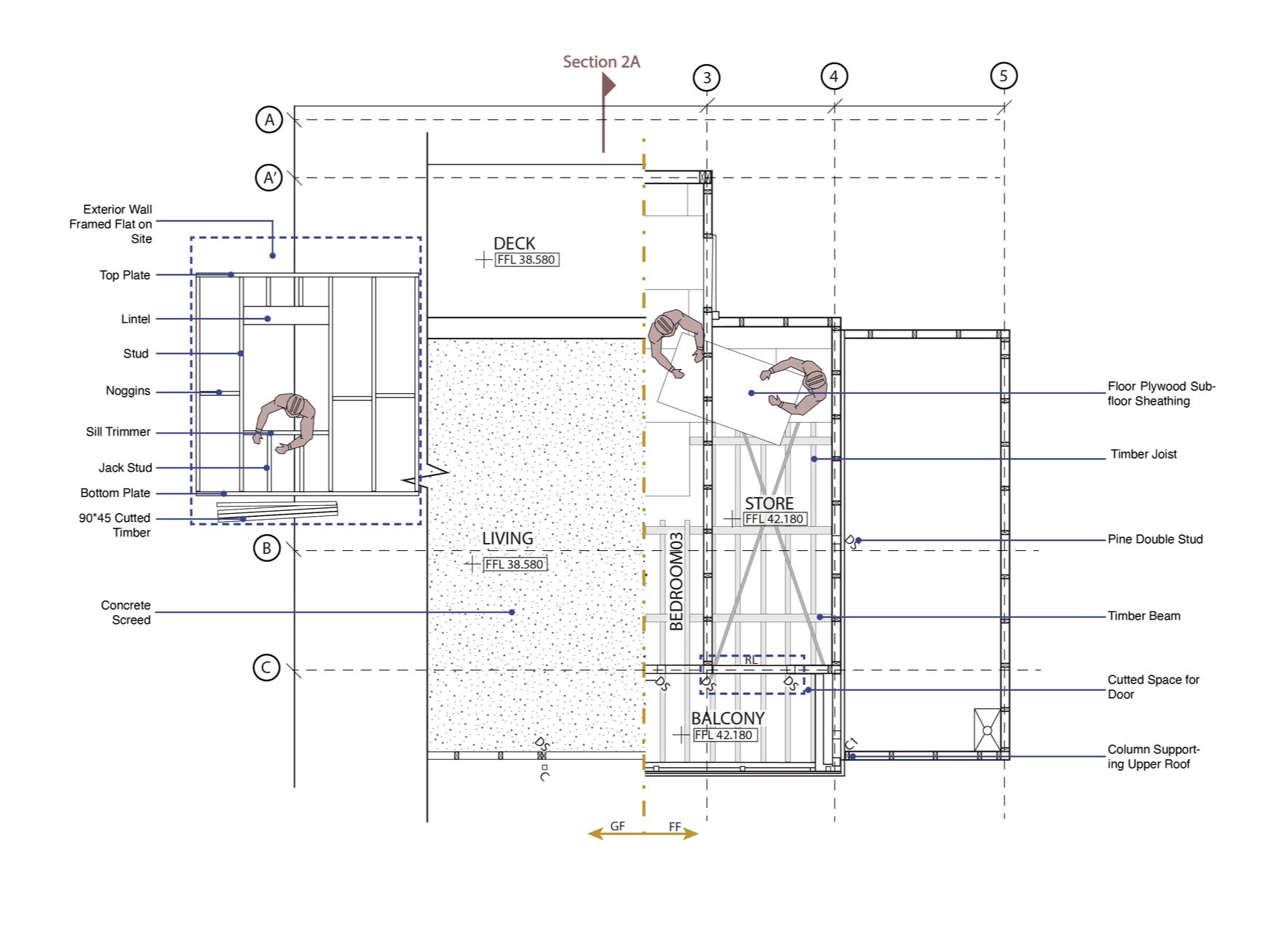

Stage 2 Structural Framing
Stage 3 Roof Systems: Sheeting , Cover, Skylight

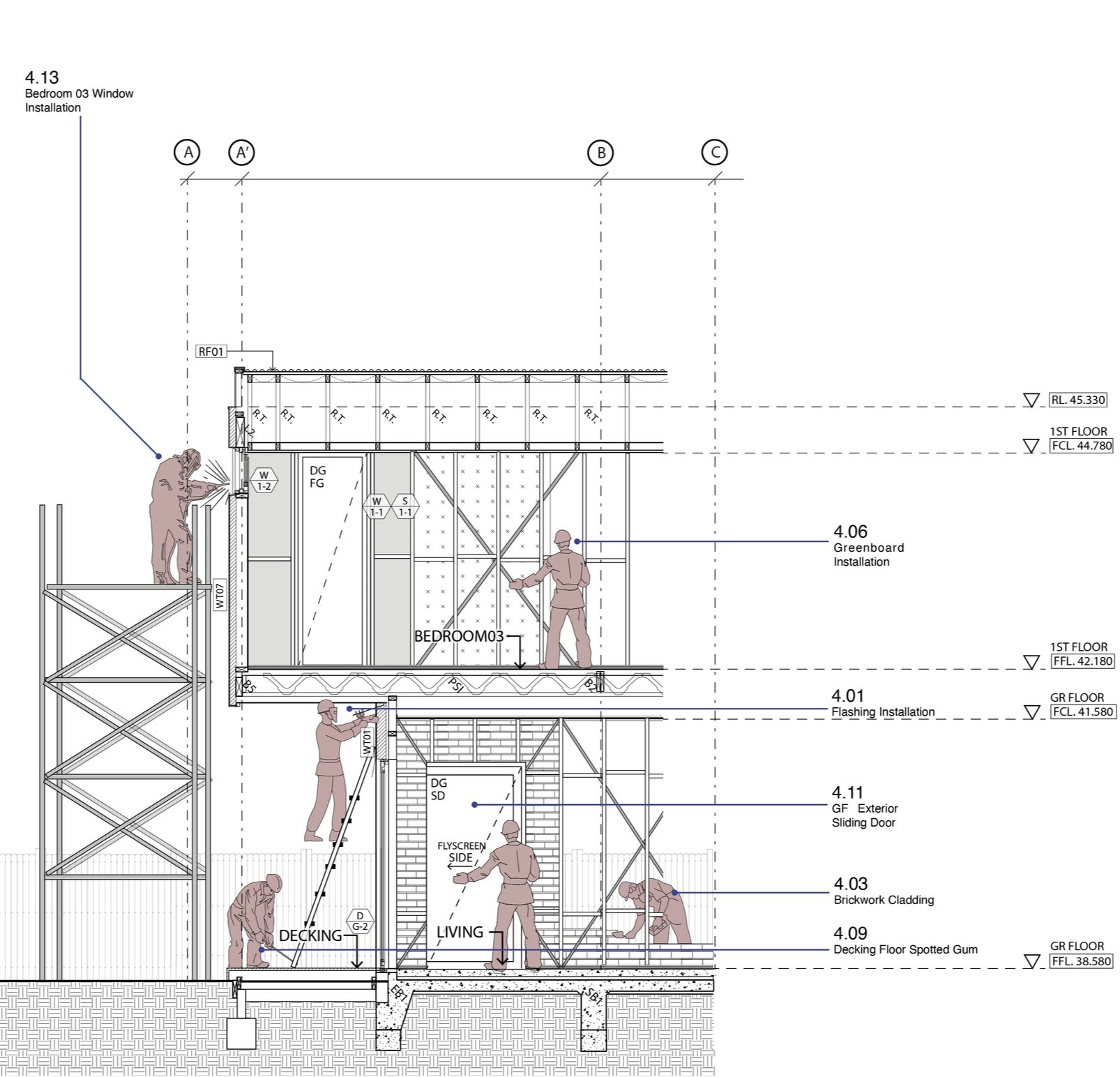

Stage 4 Exterior Construction: Wall Cladding, Windows, External Door

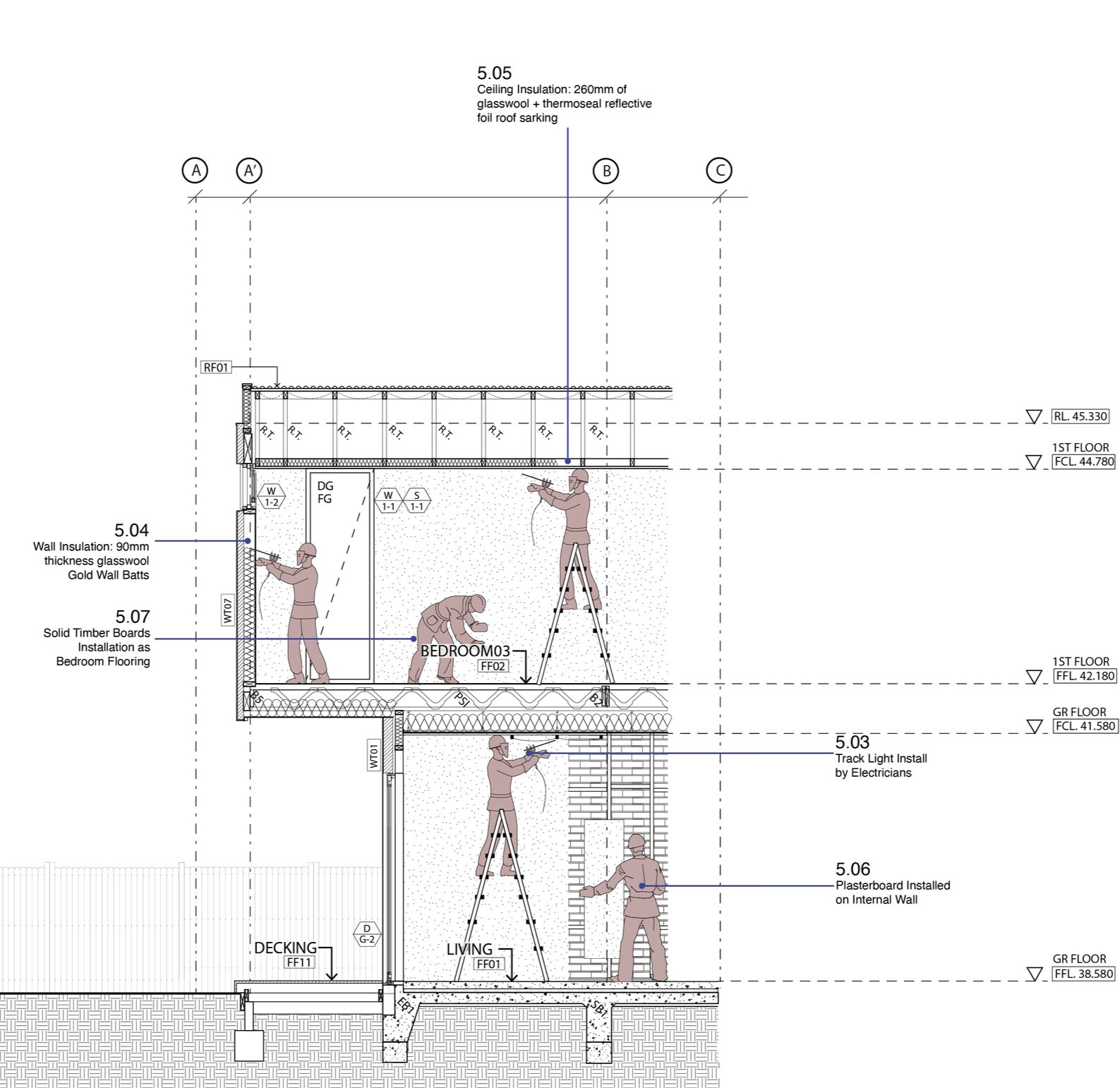

Stage 5 Internal Fit-out and Services Rough-in
Stage 6 Finishing Trades, Services Fit-off and Commissioning, Handover
Stage 1 Site preparation, Foundation, Footing

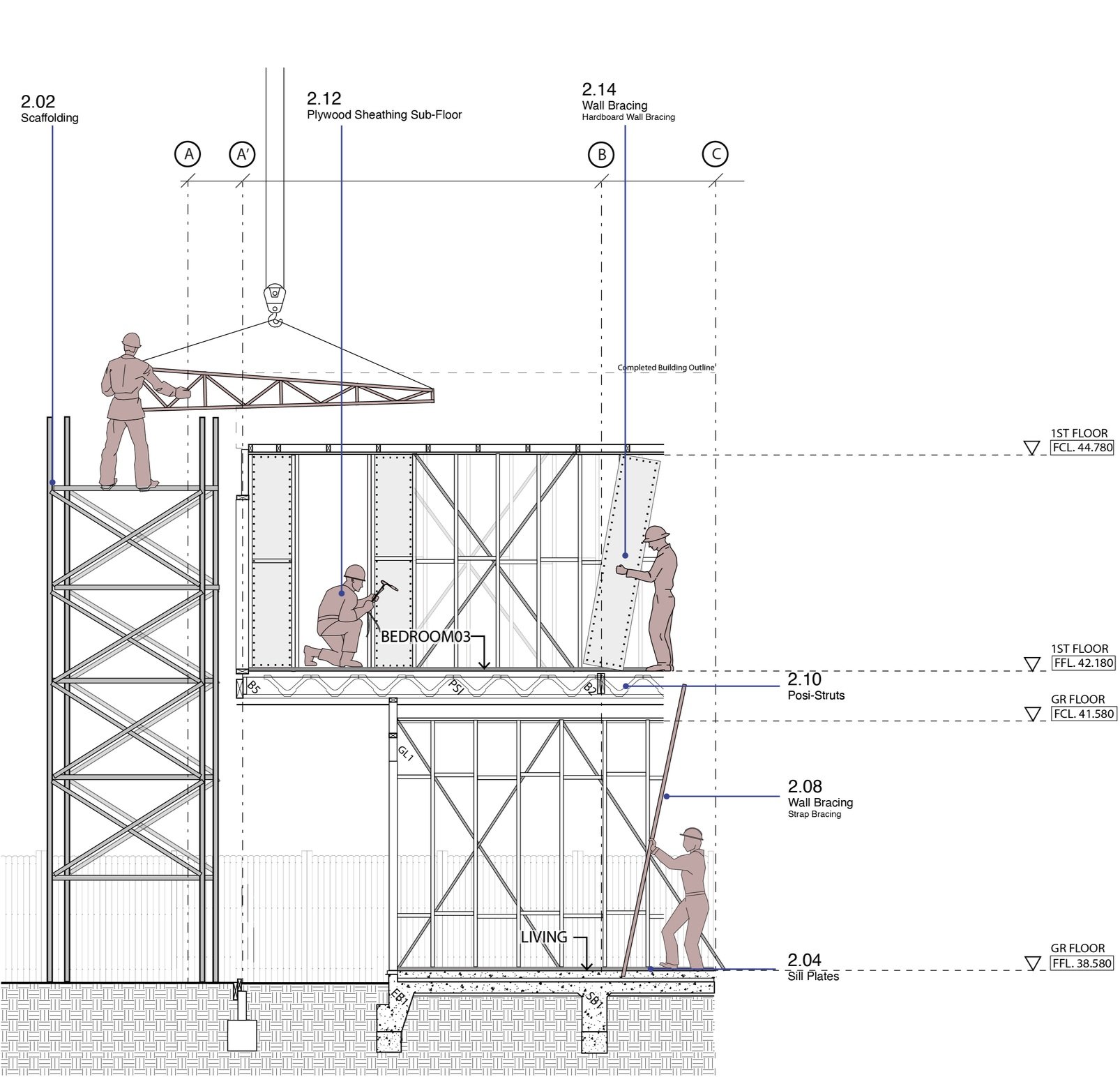

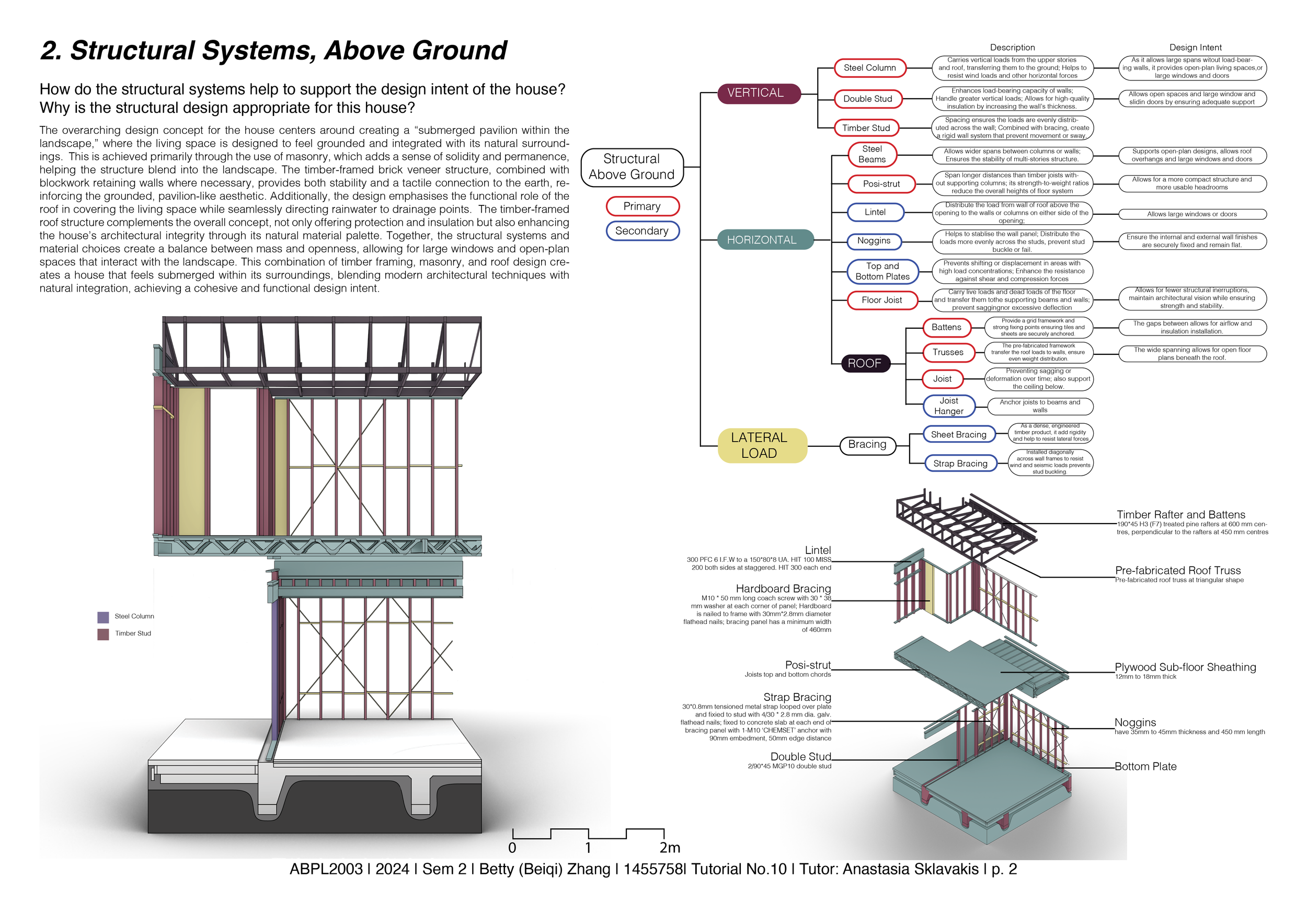

Stage 2 Structural Framing

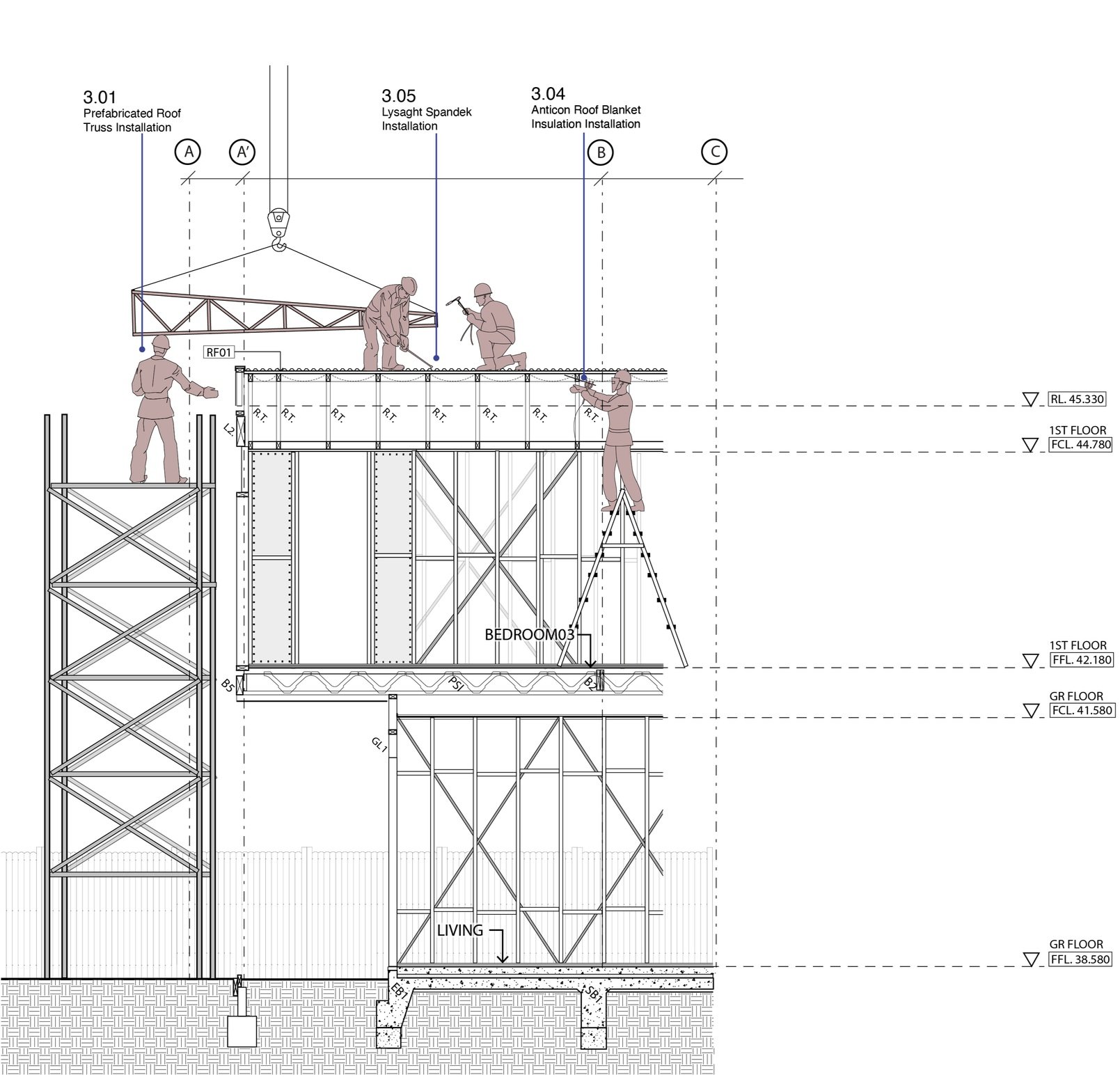

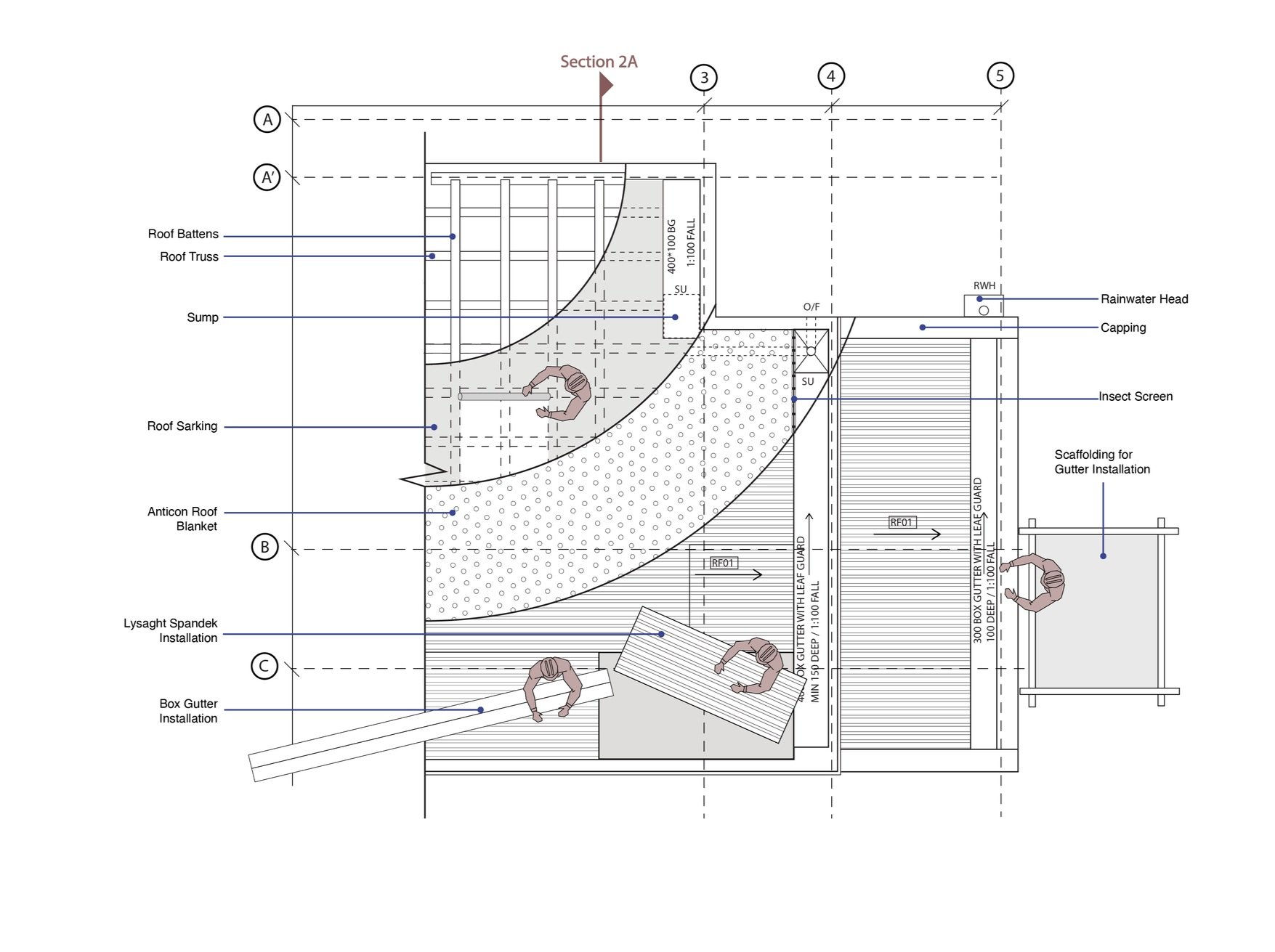

Stage 3 Roof Systems: Sheeting , Cover, Skylight

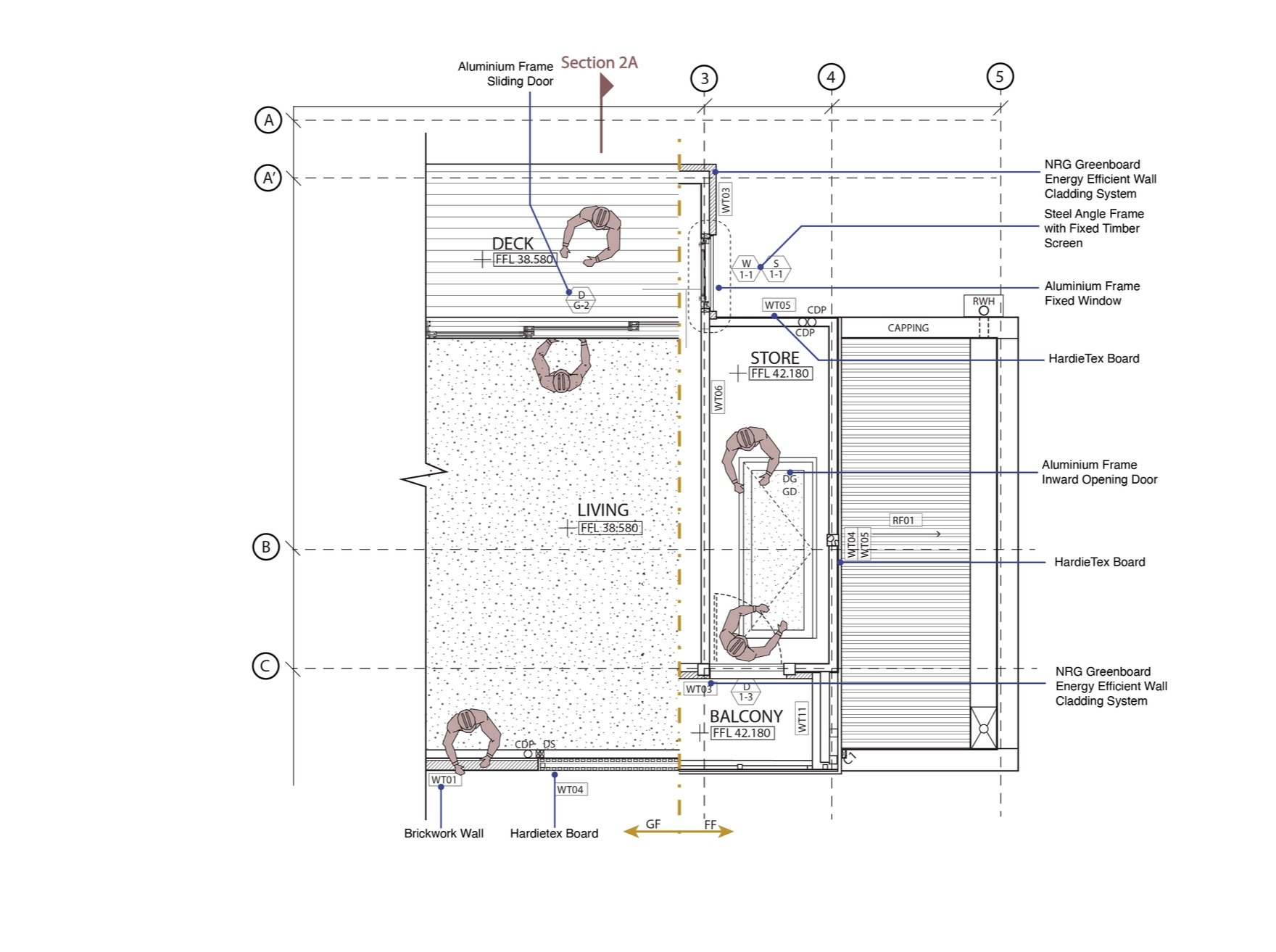

Stage 4 Exterior Construction: Wall Cladding, Windows, External Door
Stage 5 Internal Fit-out and Services Rough-in

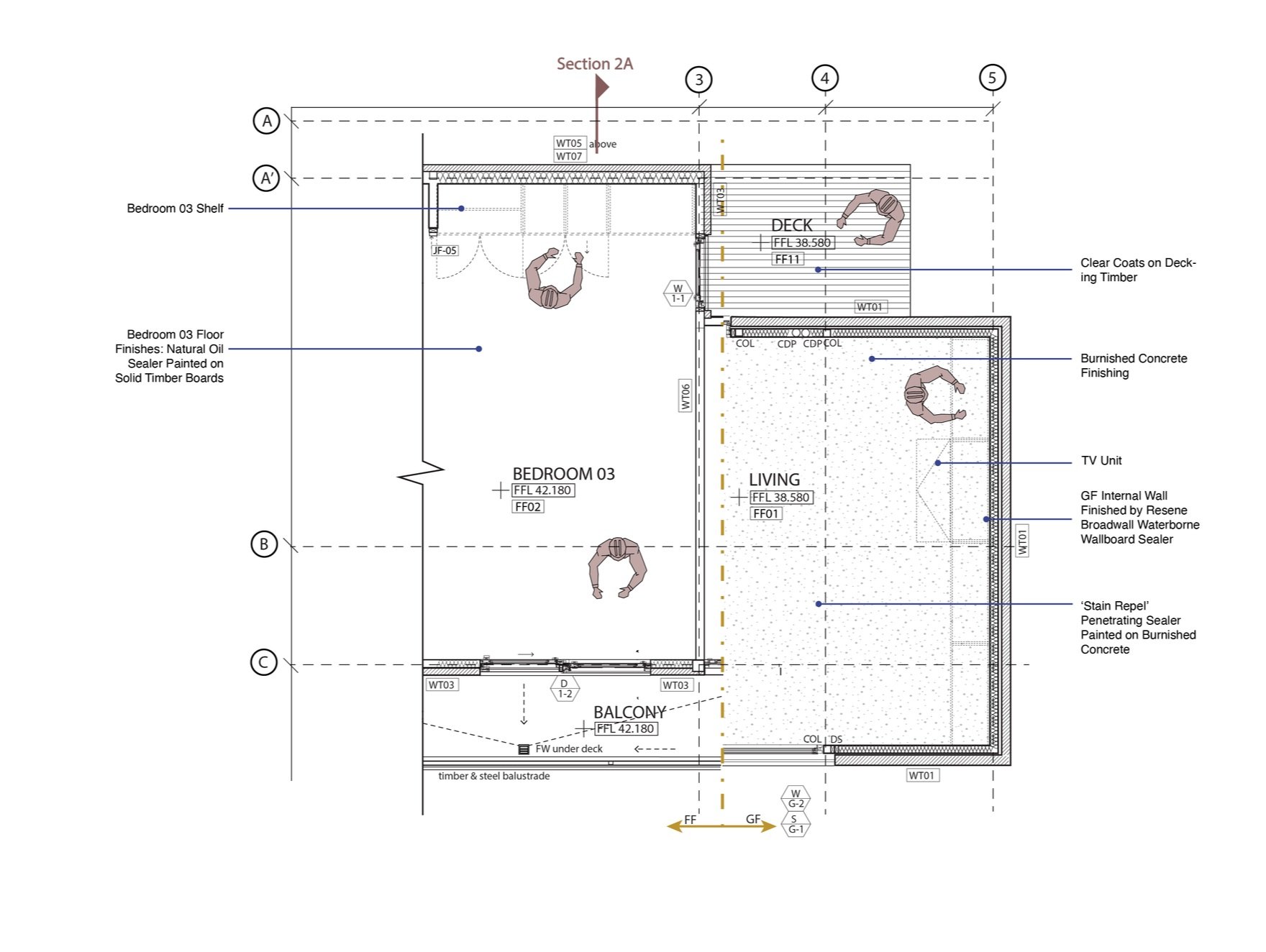

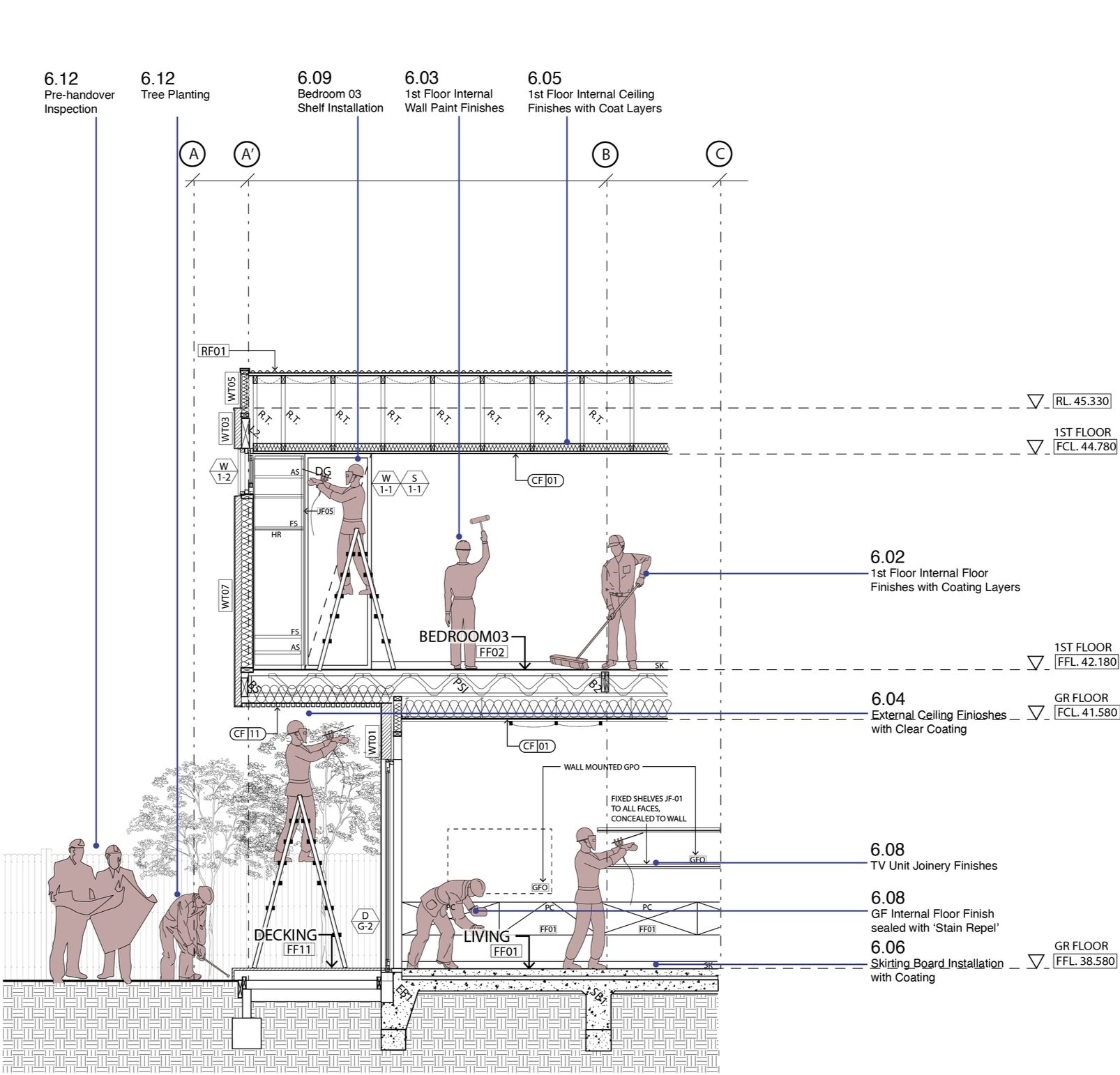

Stage 6 Finishing Trades, Services Fit-off and Commissioning, Handover
